DIMENSIONS

LENGTH:

25' - 40'

WIDTH:

102"

WEIGHT RATINGS

AXLE OPTIONS:

7k, 8k, 10k Single Wheel

GVWR:

14k - 20k

RUNNING GEAR

TIRES:

ST235/80R16

TIRE PLY:

10 Ply

RIMS:

16" x 6" Black

AXLE TYPE:

2 - 10k Dexter Axles

AXLE COUNT:

2

BOLT PATTERN:

8 on 6.5"

SPARE TIRE:

ST235/80R16 - Included

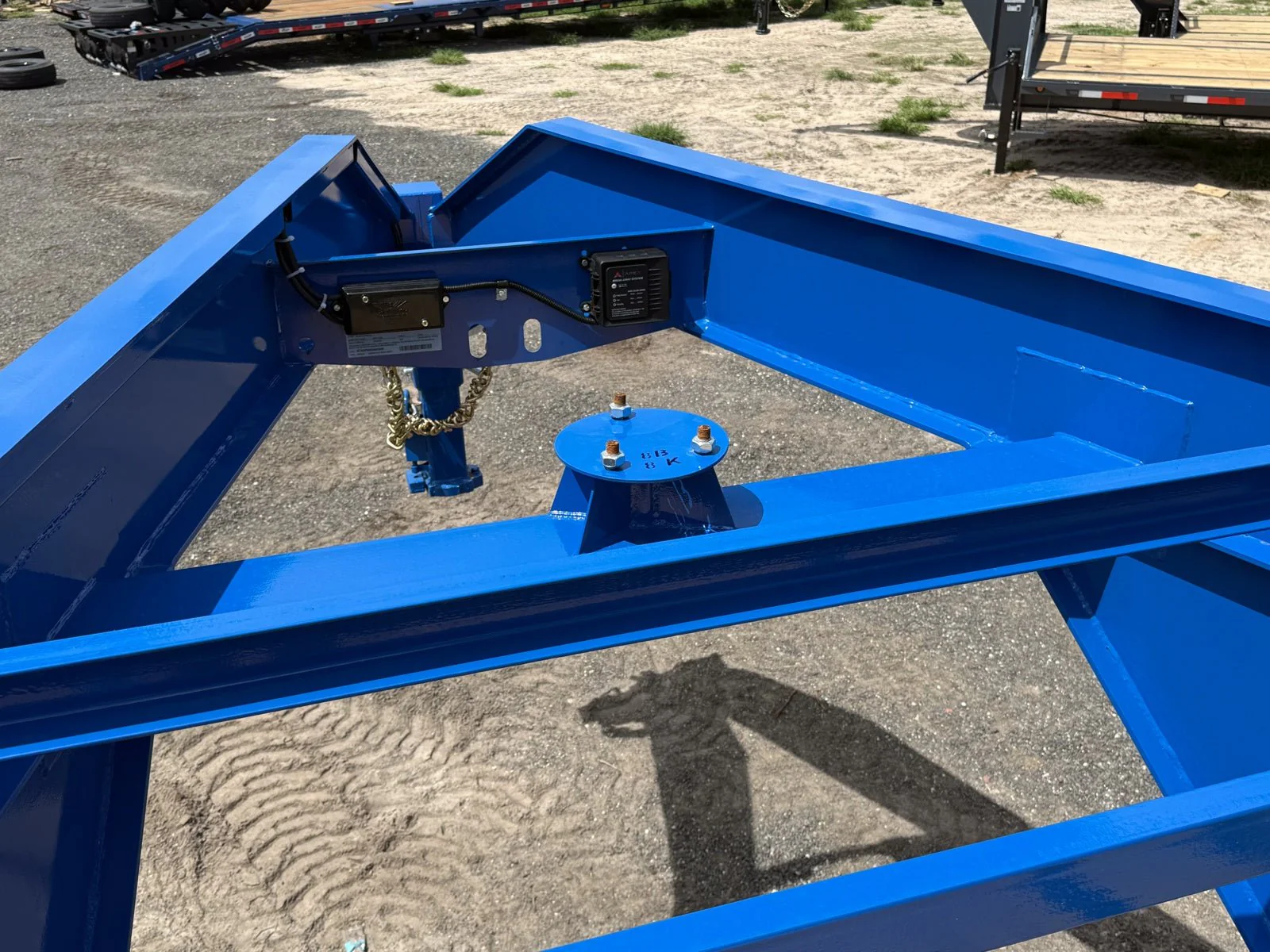

GOOSENECK

PULL TYPE:

Gooseneck

TYPE:

Fabricated I-Beam

JACKS:

1 Side Wind Drop Jack Legs (10,000 lbs)

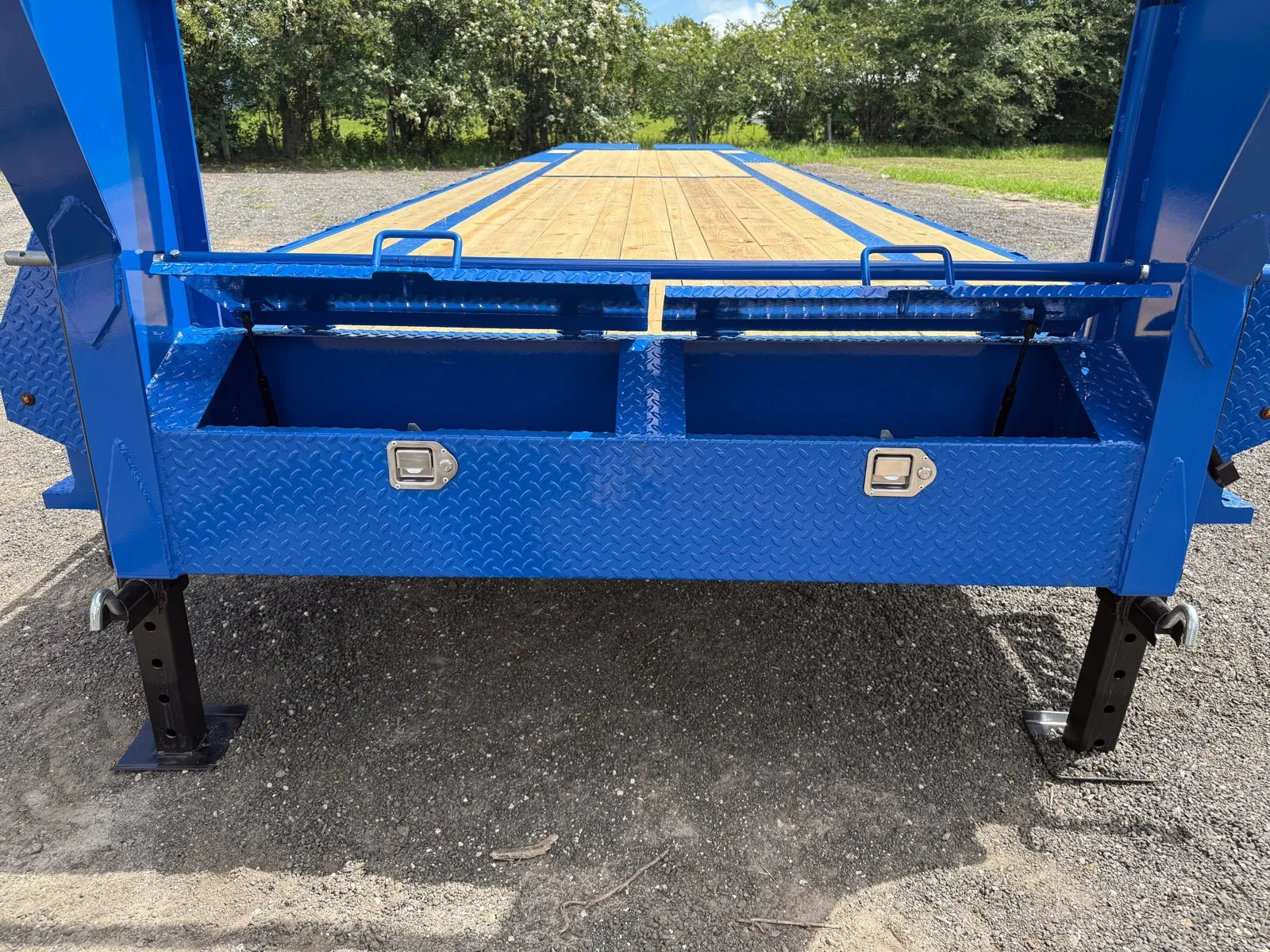

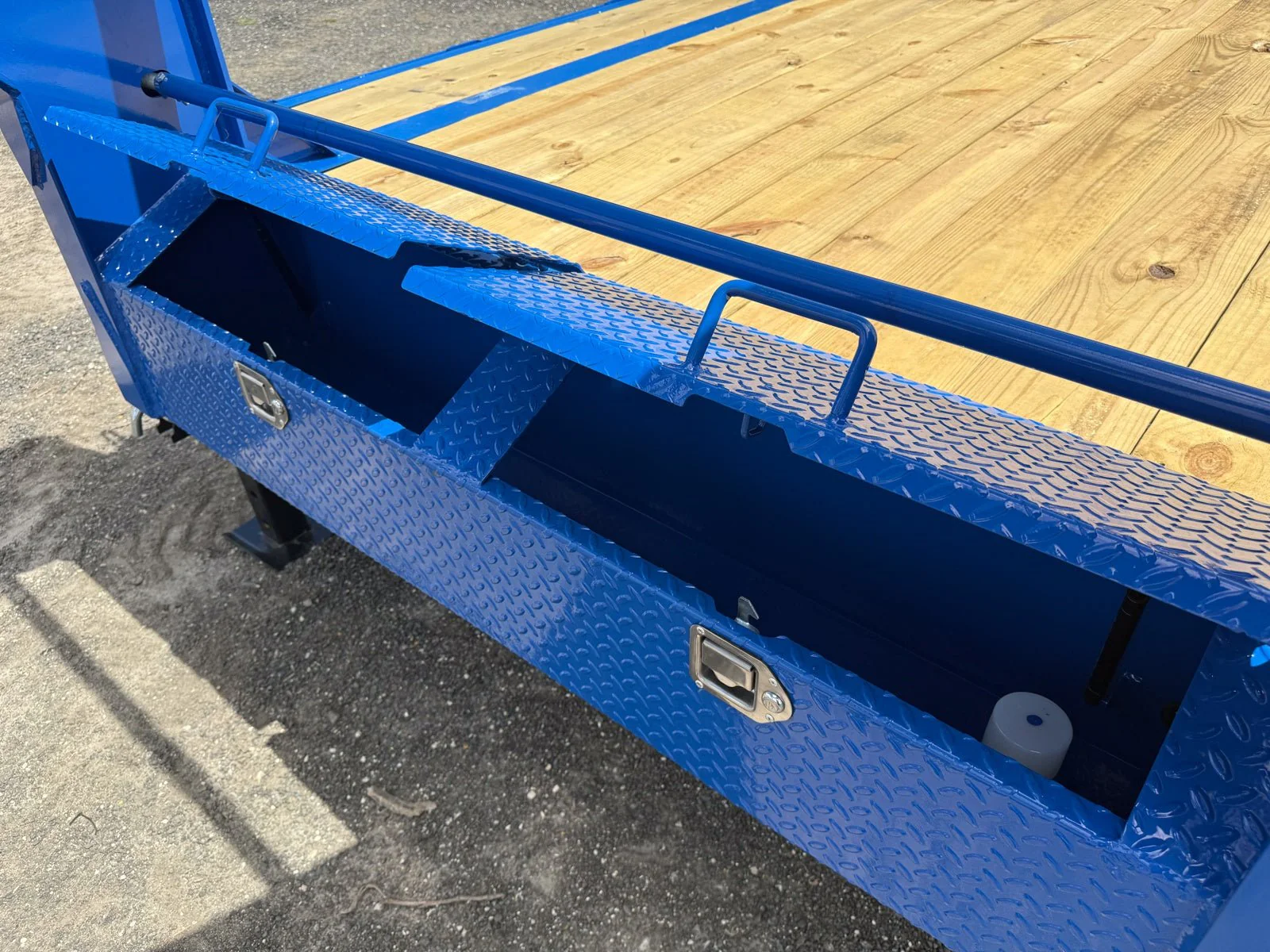

TOOLBOX:

Lockable Toolbox

FRAME & CONSTRUCTION

FRAME:

19 lb Pierced I-Beam

CROSSMEMBERS:

3" Channel, 16" Spacing

DECK:

Wood

TORQUE TUBE:

Flex Control Torque Tube

RAMPS:

10' Aluminum Slide In Ramps

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Black, Gray, White, Light Grey, Red, Blue, Lime Green, Green, Orange

ELECTRICAL & LIGHTING

REAR LIGHTS:

DOT Approved LED Lighting

CARGO OPTIONS

RAIL SYSTEM:

Slide Rails w/ Ratchets

RAMP TYPE:

Mega Ramps

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty
