DIMENSIONS

LENGTH:

20' - 44'

WIDTH:

102"

DECK HEIGHT:

34"

WEIGHT RATINGS

GAWR:

10k, 12k

GVWR:

25k - 25.9k

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

SAFETY

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

SAFETY CHAINS:

3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

GOOSENECK

PULL TYPE:

Gooseneck

TONGUE:

Engineered I-Beam, 98" Long

COUPLER:

Adjustable 2-5/16" Coupler (30,000 lbs)

JACKS:

2 Side Wind Drop Jack Legs (12,000 lbs)

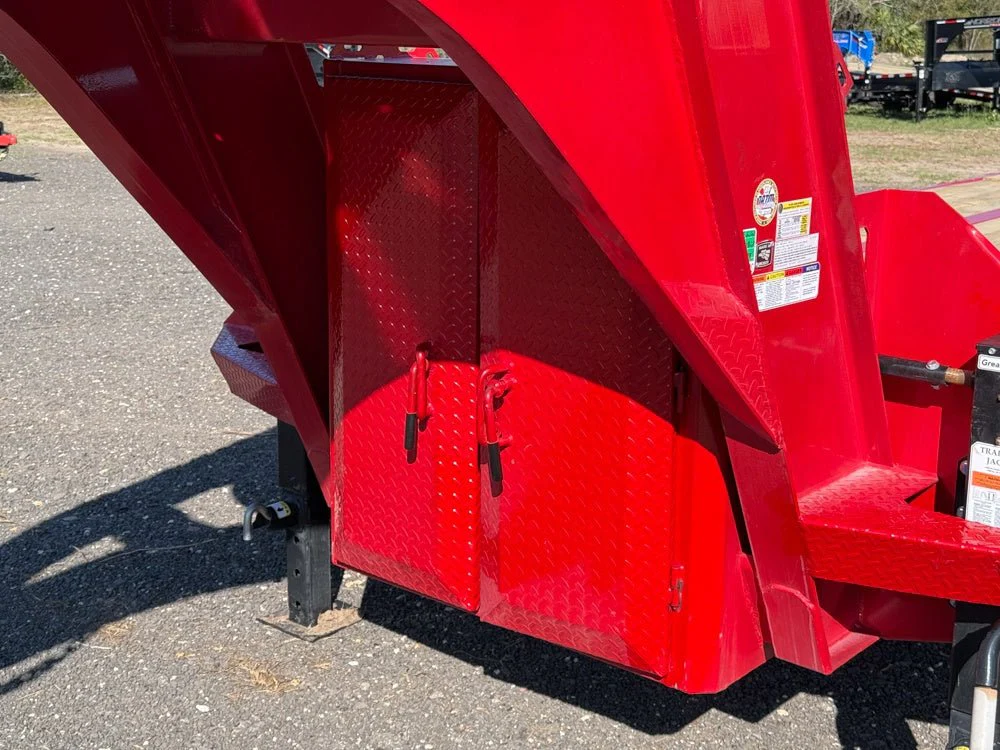

TOOLBOX GN:

Mega Lockable Toolbox

DECK & LOADING

DECK TYPE:

Wood

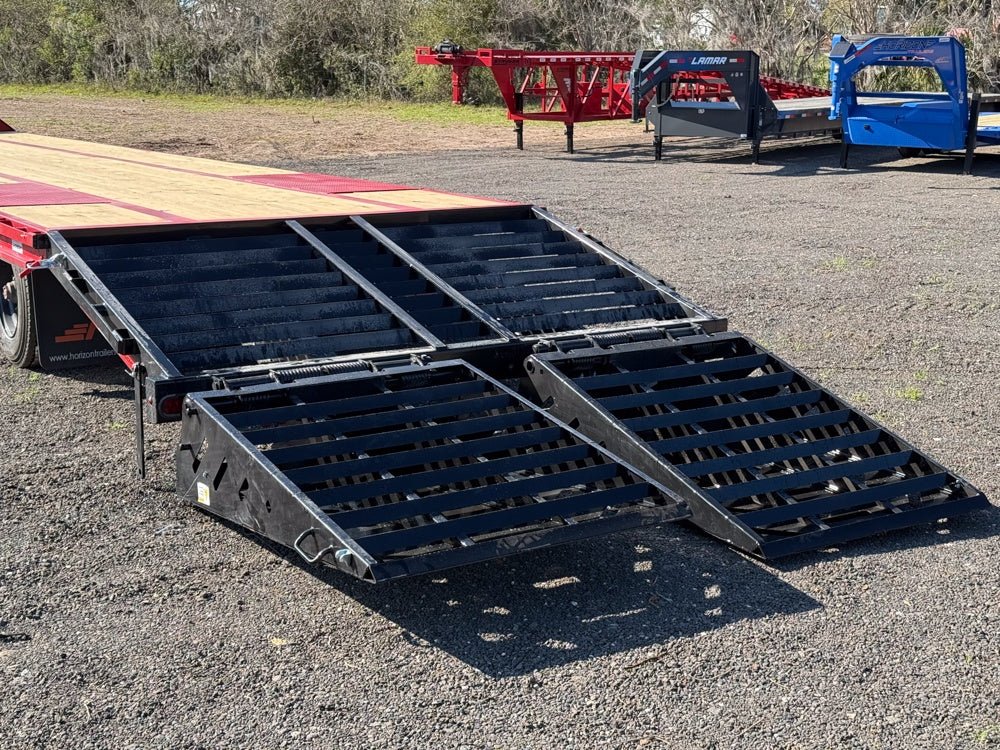

RAMPS:

8' Slide In Ramps

SWAY CONTROL:

4 1/2" Torque Tube (30'+)

ELECTRICAL & LIGHTING

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

RUNNING GEAR

TIRES:

Radial Tires, ST235/75R17.5, 18 Ply

RIMS:

17.5" Black Mod Wheels

AXLE TYPE:

2 - Single 10k Electric Brake Oil Bath Axles
2 - Single 12k Electric Brake Oil Bath Axles

AXLE COUNT:

2

BOLT PATTERN:

8 on 6.5"

SUSPENSION TYPE:

Spring

FRAME & CONSTRUCTION

MAIN FRAME:

12" I-Beam (19 lbs/ft)

CROSSMEMBERS:

3" Channel, 16" Spacing

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty
