DIMENSIONS

LENGTH:

20' - 44'

WIDTH:

102"

DECK HEIGHT:

34"

WEIGHT RATINGS

AXLE OPTIONS:

10k, 12k, 16k

GVWR:

25k - 30k

RUNNING GEAR

TIRES:

ST235/80R16

TIRE PLY:

10 Ply

TIRE RATING:

3,080 lbs

RIMS:

16" Black Mod Wheels

AXLE TYPE:

2 - 10k Electric Brake Dual Oil Bath Axles
2 - 12k Electric Brake Dual Oil Bath Axles
2 - 16k Electric Brake Dual Oil Bath Axles

AXLE COUNT:

2

BOLT PATTERN:

8 on 6.5"

BRAKES:

Electric Brake

SUSPENSION:

Spring

TONGUE

PULL TYPE:

Pintle Hitch

TYPE:

Pintle Hitch

LENGTH:

83"

JACKS:

2 - Side Wind Spring Loaded 12k Drop-Leg Jacks

COUPLER:

Pintle Ring (42,000 lbs)

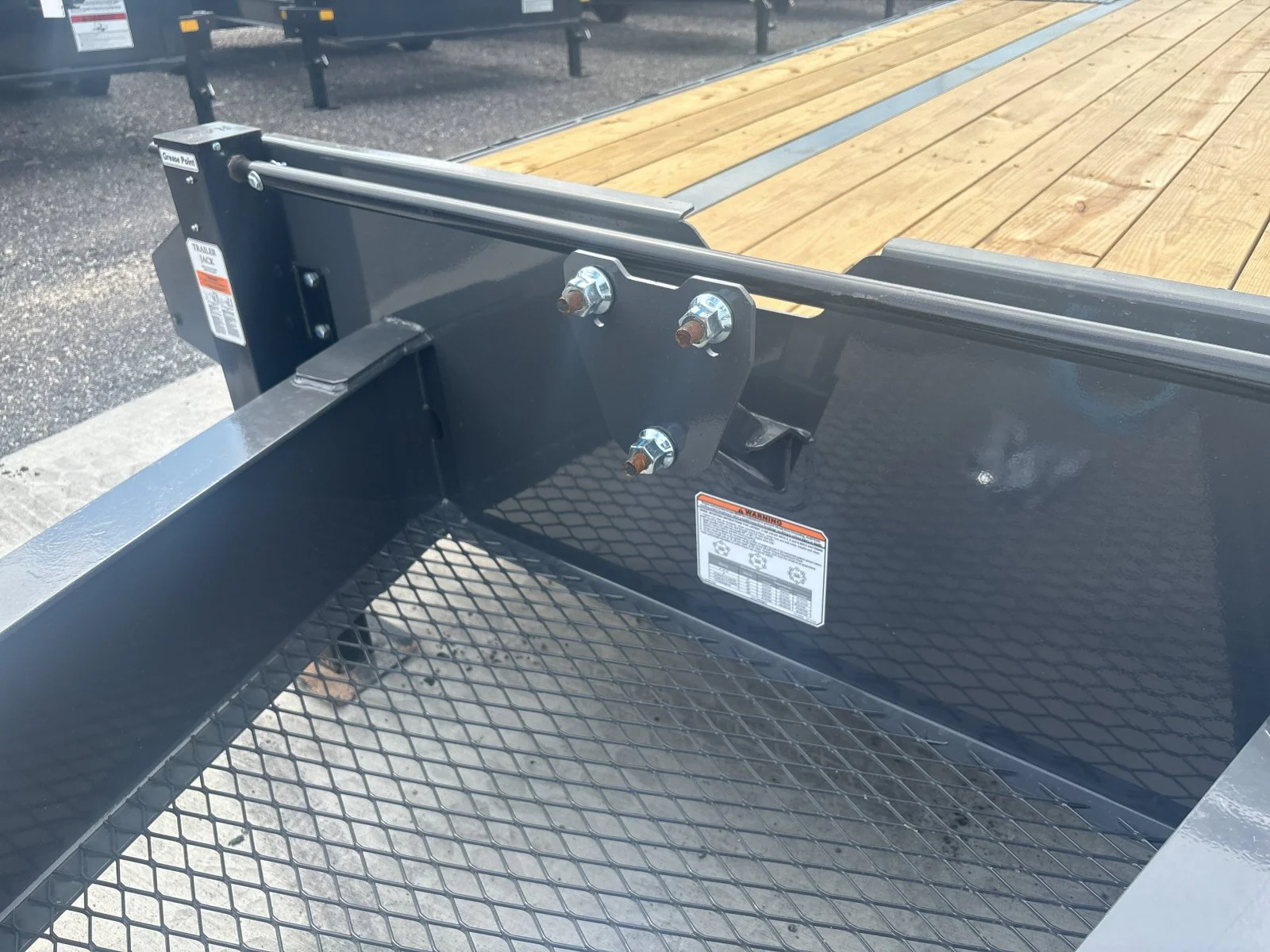

STORAGE:

Diamond Mesh Wire Floor Storage

FRAME & CONSTRUCTION

MAIN FRAME:

12" 19 lb I-Beam

CROSSMEMBERS:

3" Channel, 16" Spacing

DECK:

Wood

TORQUE TUBE:

4 1/2" Tube (30'+)

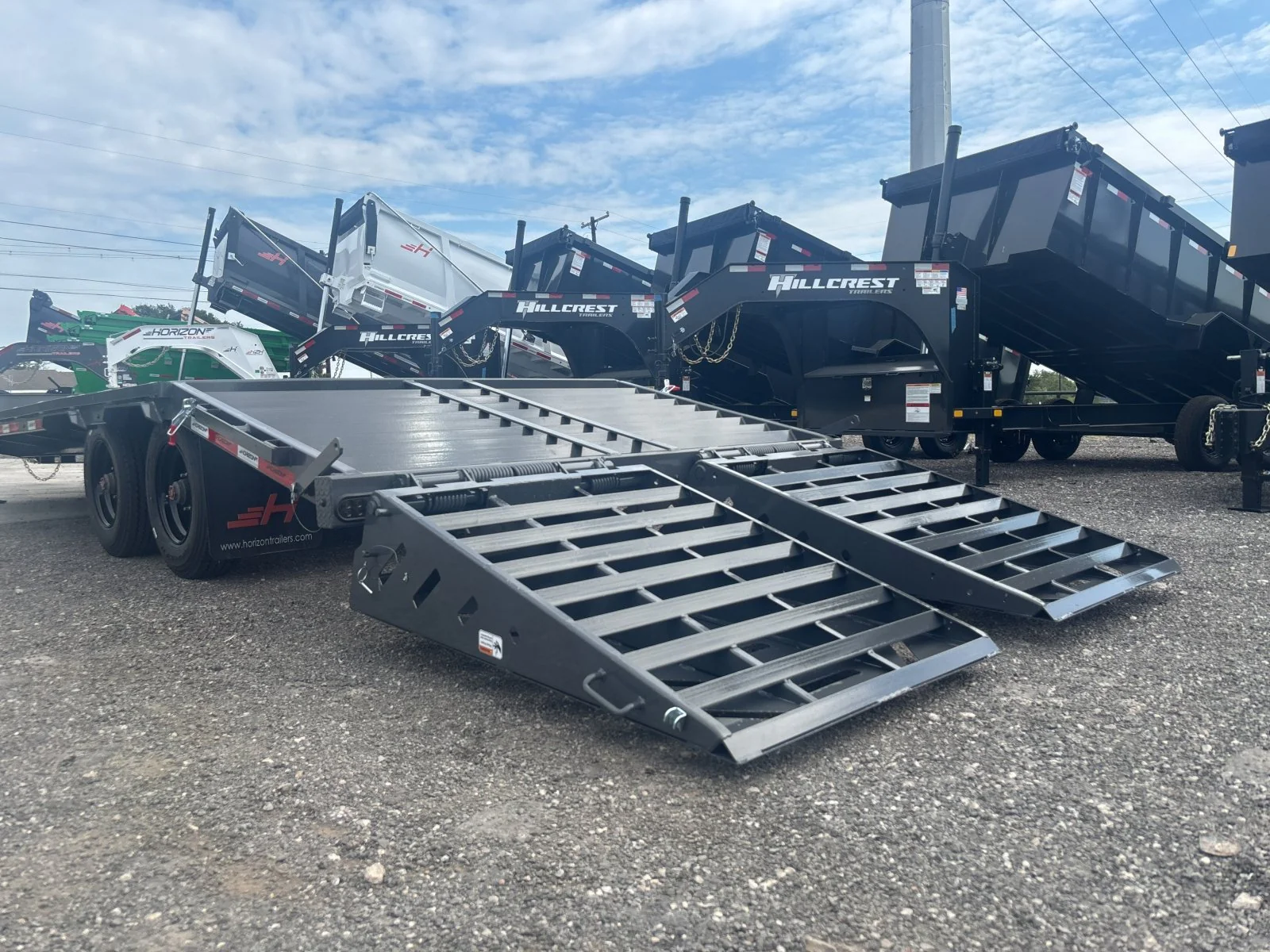

RAMPS:

8' Slide In Ramps

SAFETY SYSTEM

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

SAFETY CHAINS:

3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

ELECTRICAL & LIGHTING

REAR LIGHTS:

DOT Approved LED Lighting

WIRING:

All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness

CARGO OPTIONS

RAIL SYSTEM:

Slide Rails, Right Side, Left Side, or Both

D-RINGS:

Additional D-Rings

RATCHETS:

Weld On Ratchets
Sliding Ratchets

TOOLBOX:

Side Mount Toolbox

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)

UNDERCOAT:

Zinc Primer Undercoat

RAMPS:

Ramps Painted Black

WARRANTY

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty

AXLE WARRANTY:

5 Year Dexter Axle Warranty
