DIMENSIONS

LENGTH:

20' - 44'

WIDTH:

102"

DECK HEIGHT:

34"

WEIGHT RATINGS

GAWR:

7k, 8k, 10k SS

GVWR:

15,000 - 22,000 lbs

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty

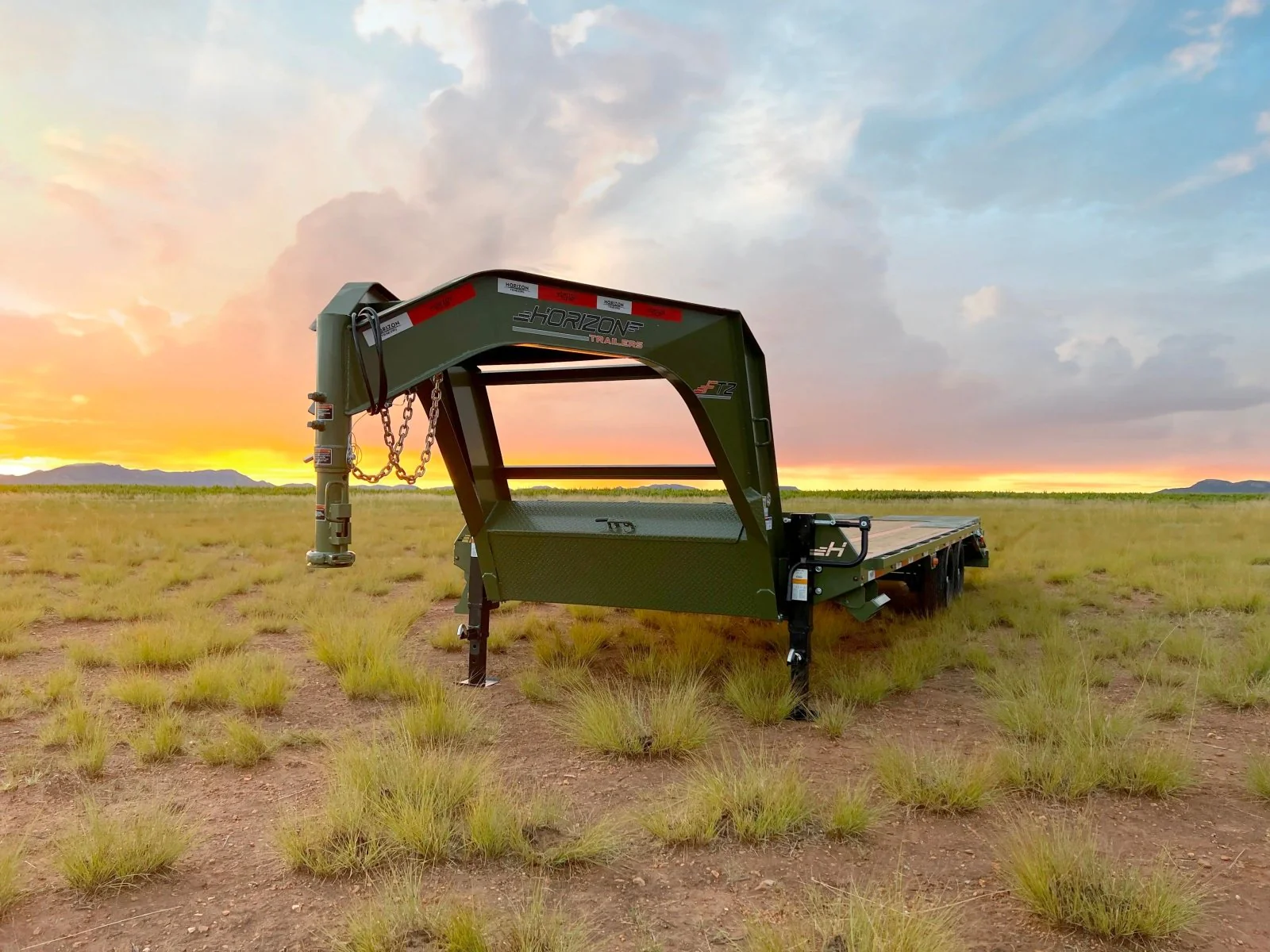

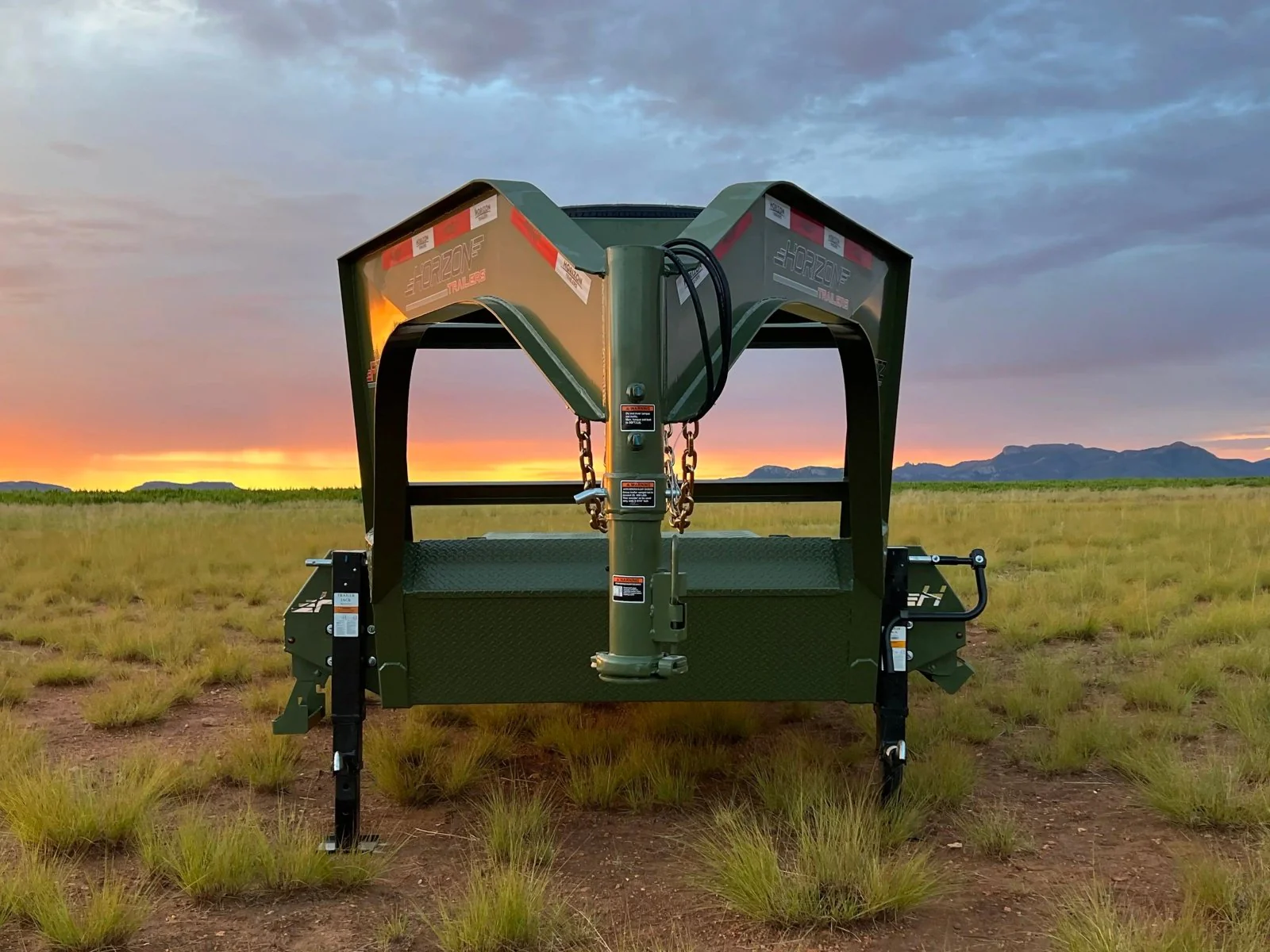

GOOSENECK

PULL TYPE:

Gooseneck

TONGUE:

Engineered I-Beam, 98" Long

HEIGHT:

70" (From Underneath Neck)

COUPLER:

Adjustable 2-5/16" Coupler (30,000 lbs)

JACKS:

2 Side Wind Drop Jack Legs (12,000 lbs)

STORAGE

TOOLBOX:

Mega Lockable Toolbox

SAFETY

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

SAFETY CHAINS:

3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

DECK & LOADING

DECK TYPE:

Wood

RAMPS:

8' Slide In Ramps

ELECTRICAL & LIGHTING

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

RUNNING GEAR

TIRES:

Radial Tires, ST235/80R16, 10 Ply, 3,520 lbs Rating

RIMS:

16" Black Mod Wheels

AXLES:

2 - 7k Electric Brake Dexter Axles

BOLT PATTERN:

8 on 6.5"

SUSPENSION TYPE:

Spring

FRAME & CONSTRUCTION

MAIN FRAME:

12" I-Beam (14 lbs/ft)

CROSSMEMBERS:

3" Channel, 16" Spacing
